MJS-500 Cube Ice Machine – Efficient Commercial Ice Maker

Description

MJS-500 Cube Ice Machine – Efficient Commercial Ice Maker

Product Overview:

The new ISO certified MJS-500 has a cube Ice shape, Brand Name: Huachill, with an Output (kg/24hr) of 226kg. Voltage: 220V/50HZ/single phase, Weight: 123kg

The MJS-500 Cube Ice Machine is a reliable commercial ice maker designed for small to medium-sized businesses, cafés, bars, and small hotels. It produces up to 226 kg of crystal-clear cube ice every 24 hours, ensuring a steady supply of ice for establishments with moderate demand.

Constructed with 304 stainless steel, an air-cooled system, and a Highly compressor, the MJS-500 offers durability, energy efficiency, and consistent ice production. Each cube measures 22 × 22 × 22 mm, perfect for beverages, display, and catering applications.

Key Features:

• Produces 226 kg of cube ice per day
• Air-cooled system for energy efficiency
• 304 stainless steel construction for hygiene and durability
• Compact design suitable for commercial ice production
• Easy installation and maintenance

Technical Specifications :

Parameter- Value

Ice Shape – Cube

Output (24h) – ~226 kg

Voltage / Frequency – 220 V / 50 Hz (single phase)

Power Consumption – 1,290 W

Weight – 123 kg

Ice Tray Layout – 13 × 18 = 234 cubes

Ice Size – 22 × 22 × 22 mm

Ice Bucket Capacity- 255 L

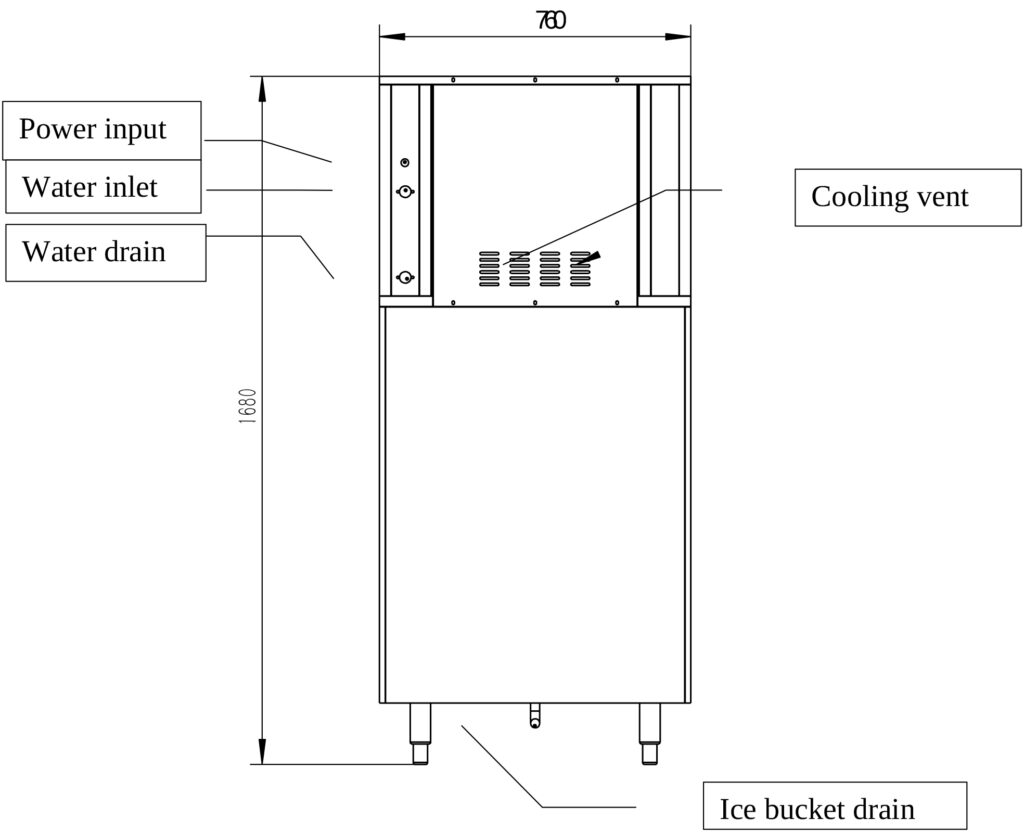

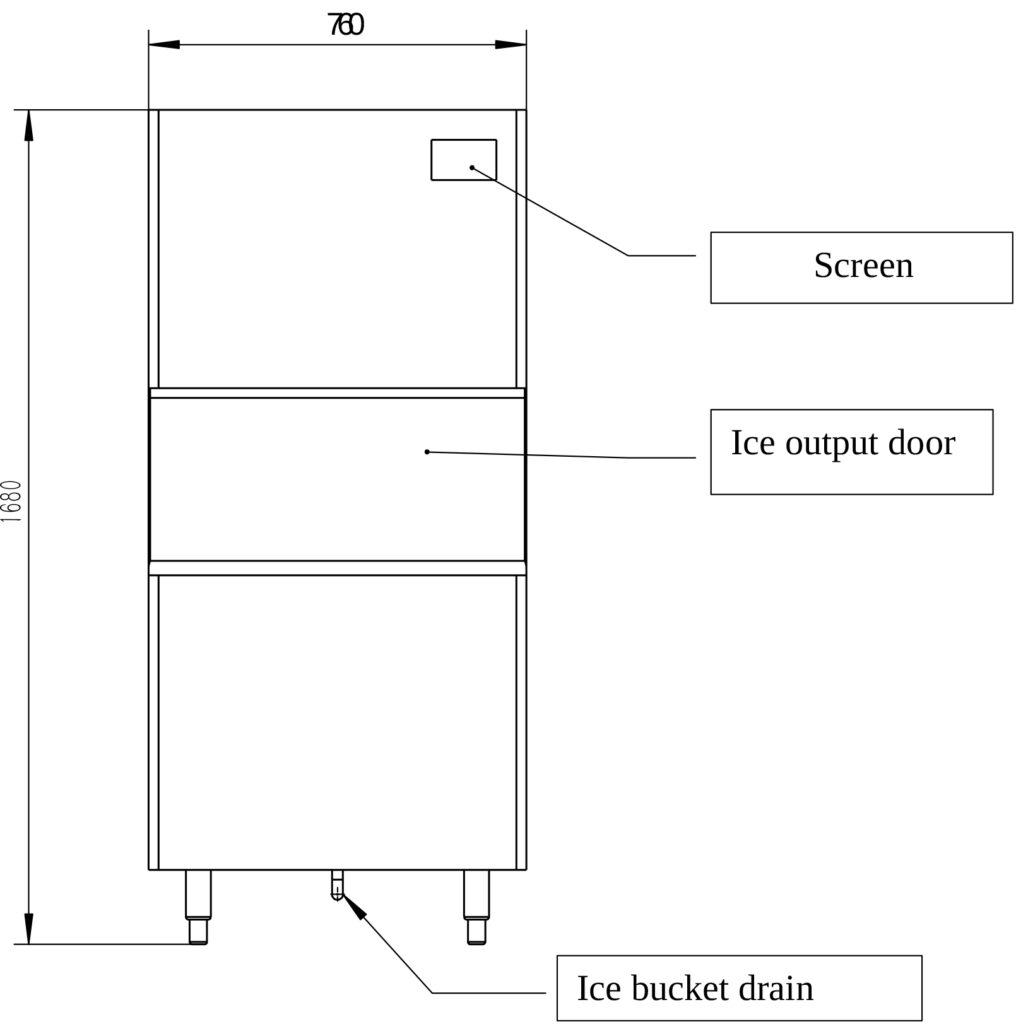

Dimensions -760 × 828 × 1,680 mm

Refrigerant – R22

Cooling Method – Air cooling

Material – 304 Stainless Steel

Certifications – CE, IEC, ISO-9001

Benefits & Use Cases:

• Commercial Hospitality & Foodservice: Ideal for small to medium-sized restaurants, cafés, bars, and catering businesses.
• Retail & Display: Suitable for juice bars, salad bars, and self-serve counters.
• Industrial & Processing: Useful in small-scale food processing or cold chain applications.
• Continuous Operation: Reliable ice output reduces refills and downtime.
• Low Maintenance: Durable stainless steel and easy air-cooled maintenance.

Installation & Operational Notes:

• Power Supply: Connect to a stable 220 V / 50 Hz single-phase system with appropriate circuit protection.
• Ventilation: Ensure adequate airflow around the machine.
• Water Quality: Use pre-filtered feed water to reduce scaling and extend machine life.
• Drainage: Provide proper drainage for meltwater and defrost cycles.
• Service & Spare Parts: Local technical support and spare parts available.
• Compliance: Confirm compliance with local safety and refrigerant standards (R22).

What’s in the box
1 x Ice Maker
1 X Bin
1 X Scoop
